VisionBase Studio
For production managers

Quality and process data from inspection.

In addition to the pass/fail decision, VisionBase records statistics from each inspection: SPC (X-bar/R), Cp/Cpk, yield and trend analysis, and part traceability. Results are available through scheduled reports and a live dashboard, and can be sent to an MES or database.

Request a demo Available metrics
Cp/Cpk
process capability
X-bar / R
SPC control charts
Per part
traceability
Web
live dashboard
Metrics & records

Quality metrics and traceability.

Process control

SPC X-bar/R charts with A2/D3/D4 control limits and out-of-control detection indicate when a process is drifting.

Yield and defect breakdown

Yield, cycle-time statistics, and a defect breakdown per station support review and continuous improvement.

Traceability

Each result records operator, shift, batch, and the serial captured from the barcode. Daily audit logs support compliance and root-cause analysis.

Consistency across shifts

Locked recipes and role-based access keep the inspection the same across operators and shifts, and record who changed what.

Reporting

Reporting is built in.

Quality reporting is part of the application; no separate BI integration or manual export is required. Results can be viewed live, sent as scheduled reports, and retained for review.

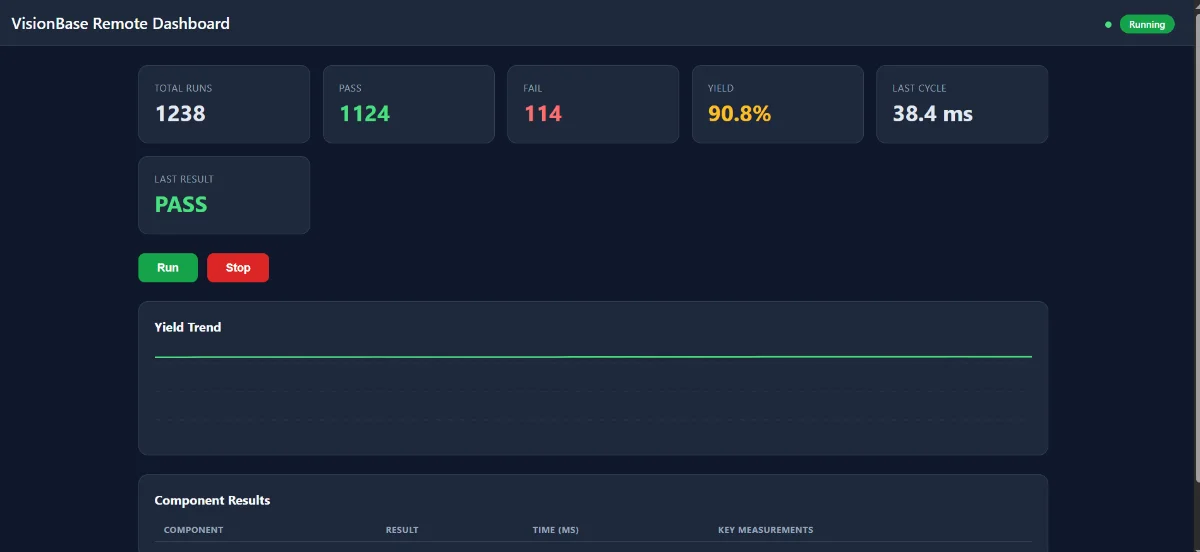

  • Live dashboard — yield, pass/fail, and trends in a browser on the network.
  • Scheduled PDF reports — shift and batch summaries generated automatically.
  • Image logging and replay — retain fail images and review recent runs.
  • Data to MES — capability metrics are included in the communication payload.
For production managers

See the metrics on your part.

We can configure an inspection on your part and show the yield, Cp/Cpk, and SPC charts it produces.

Request a demo Operator view
